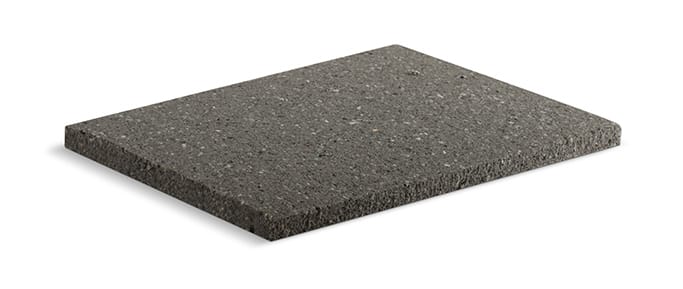

re-bounce® R (rugby)
Shock absorbing underlays for rugby pitches
re-bounce® R products are shock absorbing underlays for rugby and GAA(1) pitches. Used as a performance layer in artificial grass systems, they help ensure the pitch meets the requirements of official associations, such as IRB(2) and EN15330 specifications. Their performance remains stable over time with consistent shock absorbing and safety properties, excellent ageing resistance and good water permeability.
The re-bounce® R range consists mainly of open-cell flexible polyurethane trim foam bonded with a binder. The shock pads are easy to install and can be supplied in widths of over 2 metres.
(1) Gaelic Athletic Association
(2) International Rugby Board
Strengths
- Long term stable and reliable critical fall height results (HIC)
- Excellent shock absorption
- Good dimensional stability
- Ageing resistance
- The shock absorbing properties remain constant over time
- The foam does not rot or pulverise
- Good water permeability
- Very easy to install
- Widths of > 2 m are possible
Product grades
re-bounce® R 81.122
| Density (kg/m³) | Thickness (mm) | mass/unit area (g/m²) | Roll | |
|
Dimensions (mxm) |
Length (m) | |||
| 200 | 12 | 2400 |
2,05 x width of the pitch |
70 |
| 14 | 2800 |
70 |
||
| 16 | 3200 |
70 |
||
Sports functional properties:
This rugby shock pad range is developped to meet the specifications, stated in the IRB handbook of requirements, EN 15330 and any country specific requirements, when integrated in an artificial turf system.
Properties: triple A, critical fall height, vertical ball rebound, water permeability, dimensional stability...
re-bounce® R 82.35
| Density (kg/m³) | Thickness (mm) | mass/unit area (g/m²) | Roll | |
|
Dimensions (mxm) |
Length (m) | |||
| 250 | 12 | 3000 |
2,05 x width of the pitch |
70 |
| 14 | 3500 |
70 |
||
| 16 | 4000 |
70 |
||
Sports functional properties:
This rugby shock pad range is developped to meet the specifications, stated in the IRB handbook of requirements, EN 15330 and any country specific requirements, when integrated in an artificial turf system.
Properties: triple A, critical fall height, vertical ball rebound, water permeability, dimensional stability...
re-bounce® R 82.13
| Density (kg/m³) | Thickness (mm) | mass/unit area (g/m²) | Roll | |
|
Dimensions (mxm) |
Length (m) | |||
| 310 | 12 | 3720 |
2,05 x width of the pitch |
70 |
| 14 | 4340 |
70 |
||
Sports functional properties:
This rugby shock pad range is developped to meet the specifications, stated in the IRB handbook of requirements, EN 15330 and any country specific requirements, when integrated in an artificial turf system.
Properties: triple A, critical fall height, vertical ball rebound, water permeability, dimensional stability...
